Waveshare ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact Size, Accelerometer and Gyroscope Sensor

Marca: Waveshare
Nombre del modelo: Waveshare ESP32-S3 Development Board
Tamaño de memoria RAM instalada: 512 KB
Capacidad de almacenamiento de memoria: 16 MB
Velocidad de CPU: 2.4E+2 MHz
Tecnología de conectividad: Bluetooth, USB, Wi-Fi
Componentes incluidos: Xtensa 32-bit LX7 dual-core processor, 1.28inch capacitive touch display, QMI8658 6-axis IMU, 3.7V lithium battery recharge/discharge header, SH1.0 connector con 6 GPIO pinesVer más
Sistema operativo: FreeRTOS
Fabricante de CPU: Espressif
Estándar de comunicación inalámbrica: 802.11bgn, Bluetooth

- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use

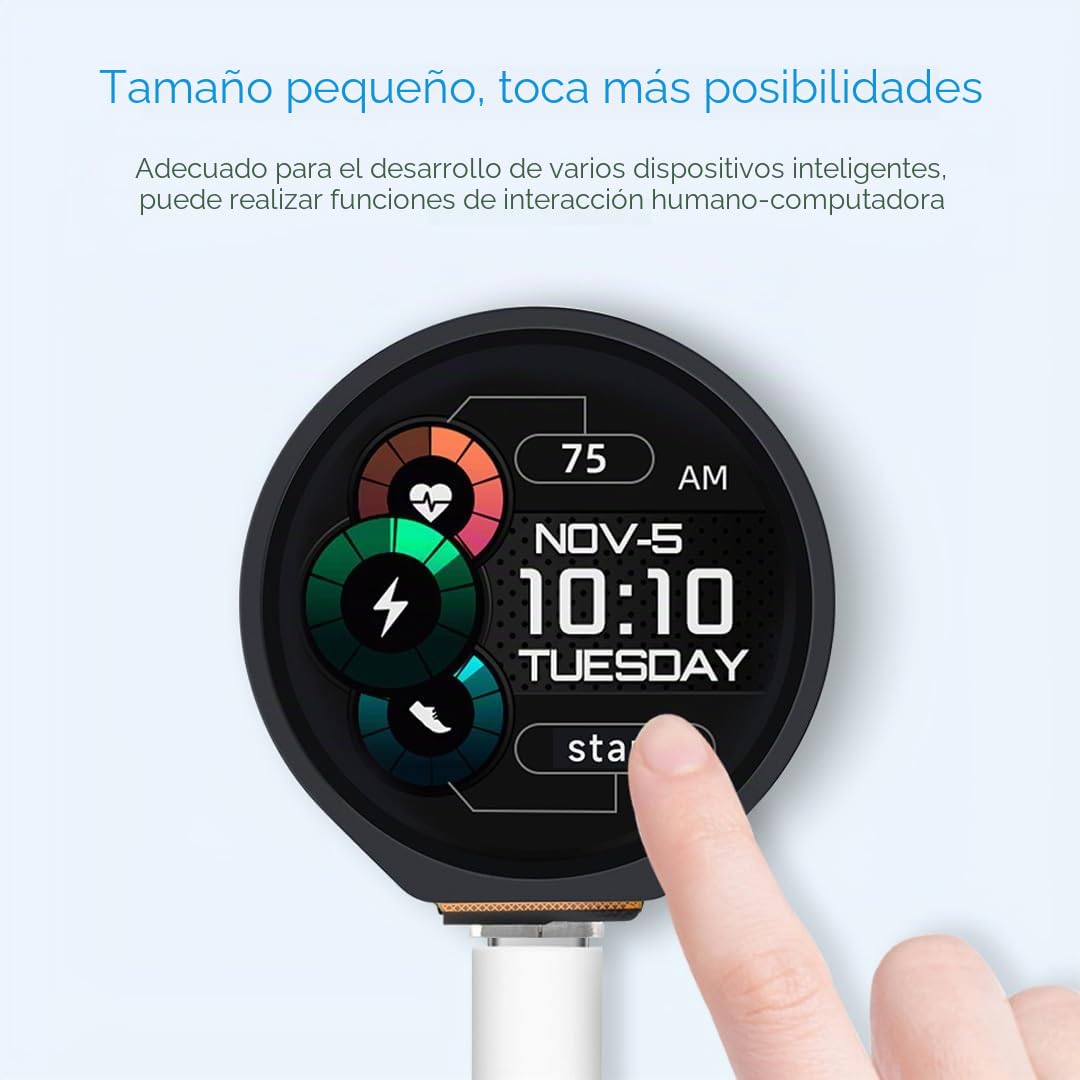

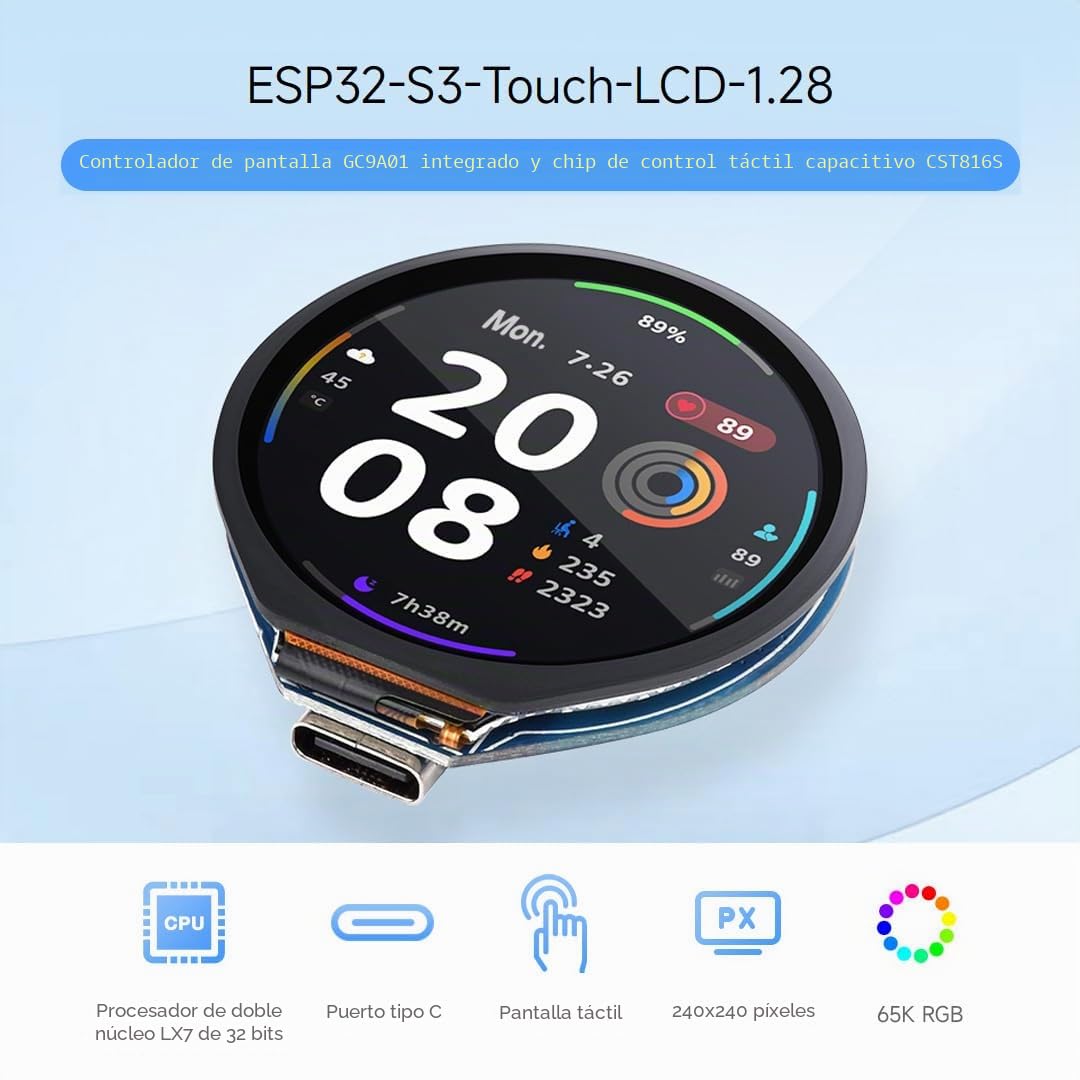

- Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

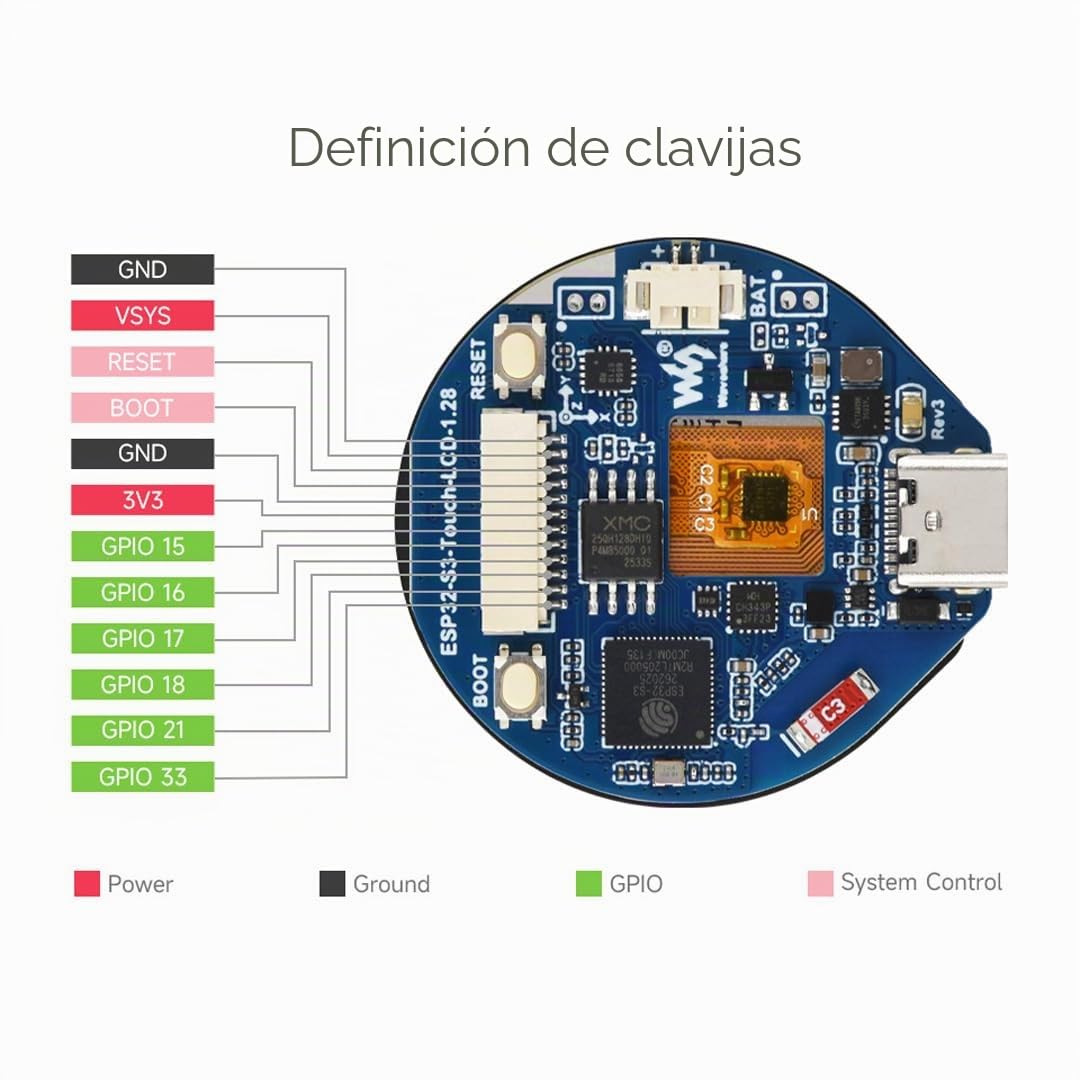

- Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
